Speciality Cartridge Filters

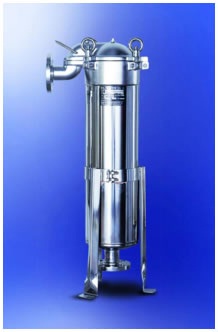

SINGLE BAG
Popular stainless steel
Single Bag Housing.
Economy on Flow and coarse bulk Solids Removal.
- Top Entry Inlet design or standard
Side Inlet
- Stainless Steel 316 or 304
- Standard Swing Bolt closure
- Compatible with HIE bag retrofit
Pleated High Surface Area Cartridge
- Adjustable Leg Assembly is standard
for Easy Installation
- Optional Electro-Polish finish
- Filter bag sizes : 1, 2, 3 and 4
- Max. operating pressure : 10 bar @ 90
deg C.
FSB-T
Series - Top Entry Inlet better filtration results due
to Uniform Flow – size 1, 2, 3 & 4
FSB-S Series -
Side Inlet with cast stainless steel head –
size 1 and 2
FSB-M
Series - Side Inlet with machined stainless steel head –
size 1 and 2
MULTI BAGS
Multi-Bag Filter
Housings for High Flow applications.
- Accommodates 2 to 12 round Size #1 or
#2 Filter Bags
- Stainless Steel 316 or 304
- Standard Swing Bolt closure or
optional Quick Opening Closure
- Compatible with HIE bag retrofit
Pleated High Surface Area Cartridge
- Positive O-Ring Sealing design
minimizing Fluid Bypass
- Optional Davit Arm with Hand Wheel,
Hydraulic Lift Lids or Spring Assisted Lift Device for
Increased Ease of Use
- Custom Designs available for
applications requiring High Operating Pressures,
Increased Chemical Compatibility or Special Inlet/Outlet
Connections
- Filter bag sizes : 1 and 2
- Max. operating pressure : 10 bar @ 90
deg C.
MSB Series -
Standard
MQB Series
- Quick Opening Closure Mechanism ideal for Frequent
Change-Out
|
 |
