Pleated Cartridge Filters

POLYPROPYLENE TYPE

High Performance Pleated Polypropylene Cartridges Deliver Consistent Performance and Long On-Stream Life.

• Fixed Pore Filter Media delivers Highly Consistent Performance and resists Dirt Unloading at Maximum Differential Pressure
• 100% Polypropylene Thermal Welded Construction – Inert to many Process Fluids ensuring Wide Chemical Compatibility
• High Surface Area – High Flow Rates and Long Service Life Reduces Maintenance Costs
• Rigid Inner Core and Outer Cage enhances Structural Strength
• Fast Rinse up to 18 Megohm-cm
• Manufactured in a Class 10,000 Clean Room
• Micron Ratings : 0,2 – 40 μm
• Cartridge Lengths : 4” - 40” (High Flow type to 60”)

Pleated Flow    -  Standard
Extra Flow        - Absolute Rated Depth Pleated Cartridges - Excellent for Gel Removal
Multipleat         - High Flow Pleated Cartridges large diameter 152mm – Inside out flow
HIE bag retrofit - Bag Filter Retrofit with Pleated High Surface Area– Inside out flow

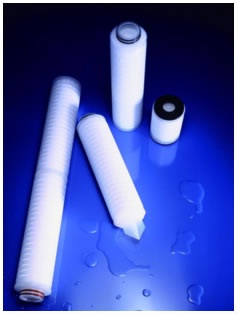

MEMBRANE TYPE

High Purity Membrane Cartridges for Ultra Pure Fluid and Gas Applications.

• Membrane materials PES, ePTFE
• Beverage, Electronic and Pharmaceutical grade Absolute Rated
• Each Filter Element Stamped with Pore Size, Lot and Serial Number for Identification and Traceability
• Thermal Welded Polypropylene Hardware Construction - Inert to many Process Fluids ensuring Wide Chemical Compatibility
• Various Gasket/O-ring materials - Compatible with many fluids
• 100% Flushed with 18 Megohm-cm DI Water and Integrity Tested
• Filters are Manufactured in a Class 1,000 Clean Room Environment
• Manufactured under a Certified ISO 9001 Quality System
• Micron Ratings : 0,04 – 100 μm
• Cartridge Lengths : 4” - 50”

UPW Flow         - PES membrane Ultra Pure Water (Fluid) Cartridge - Hydrophilic
Micro-Flow        - PES membrane 100% pre-flushed and Integrity Tested - Hydrophilic
Micro-Flow G    - Dry Gas PES membrane Cartridge (0,004 – 0,02 μm) - Hydrophilic
Mega Flow        - Large Diameter High Surface Area – 83mm OD
Fas-Clean Flow - Extra large diameter High Surface Area cartridge – 131mm OD
Tech-Flow         - ePTFE membrane for Aggressive Liquids and Gas - Hydrophobic
